Flowchart Editor (Center)

The main workspace for building missions visually. Each mission is represented as a flowchart of connected step nodes. Switch to it by clicking the Flow tab in the center panel tab bar.

How it works

The flowchart is a visual representation of the Python code that will run on the robot. Each node is one step call; connections between nodes represent execution order (sequential by default). When you save the flowchart, the IDE backend’s code generator (MissionCodeGenerator) converts the node graph into a Python class with a sequence() method containing the matching seq() / parallel() call tree.

flowchart LR
    Node1["drive_forward\n(cm=30)"]
    Node2["turn_to_heading_right\n(deg=90)"]
    Node3["line_follow_single\n(sensor=front)"]

    Node1 --> Node2 --> Node3

This flowchart generates Python roughly equivalent to:

def sequence(self) -> Sequential:
    return seq([
        drive_forward(cm=30),
        turn_to_heading_right(deg=90),
        line_follow_single(sensor=Defs.front_sensor).until(on_black(Defs.front_sensor)),
    ])

Parallel branches are represented by two or more nodes that share the same incoming connection — they become a parallel([seq([...]), seq([...])]) call in Python.

Important: The flowchart and the Python file share the same source. If you edit the Python directly in the Code tab and then save the flowchart, your manual Python edits are overwritten. Treat flowchart saves as the authoritative update path.

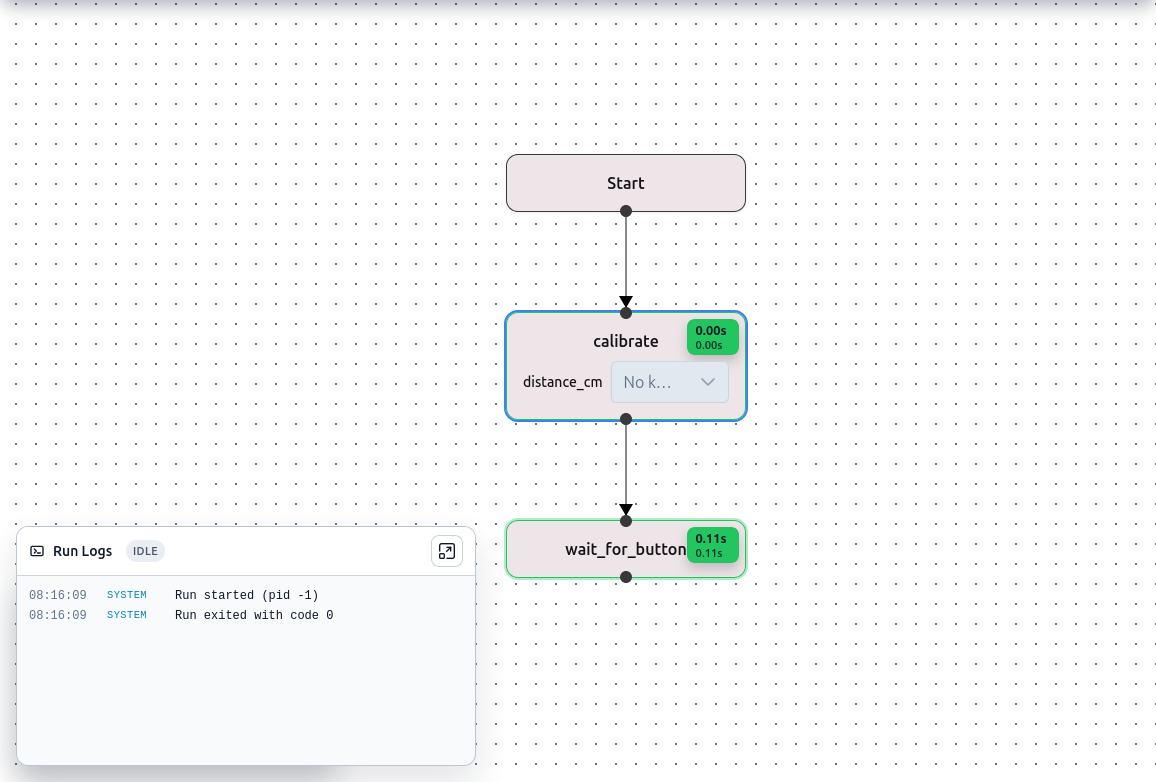

Flowchart editor with SetupMission

Nodes represent steps (e.g. calibrate, drive_forward, wait_for_button). Each node shows its step name and any editable arguments inline.

Connections show execution order — arrows flow top-to-bottom in vertical layout, or left-to-right in horizontal layout.

Editing

Action	How
Add a step	Drag from the Step Library (right panel) onto the canvas, or double-click an empty connection line
Connect steps	Drag from the output dot of one node to the input dot of another
Edit arguments	Click an argument field directly on the node
Select multiple	Click-and-drag a selection rectangle on the canvas
Delete	Select one or more nodes and press `Delete` or `Backspace`
Navigate	`Arrow keys` to move focus between connected nodes

Keyboard shortcuts

Shortcut	Action
`Ctrl+Z` / `Cmd+Z`	Undo
`Ctrl+Shift+Z` / `Ctrl+Y` / `Cmd+Shift+Z`	Redo
`Ctrl+S` / `Cmd+S`	Save the flowchart immediately
`Ctrl+K` / `Cmd+K`	Open Settings modal with the Keybindings tab active
`Delete` / `Backspace`	Delete selected node(s)
`Escape`	Deselect / cancel current operation

The flowchart component has a minimal inline toolbar — its only visible element is a save-status indicator:

A spinning icon while saving
A check icon briefly after a successful save
No icon when idle

All other controls have moved to the global navbar and the tool stripes.

Where the controls actually live

Controls that appear in the flowchart docs (older tutorials) but live elsewhere in the current UI:

Control	Where it actually is
⚙ Settings (gear icon)	Global navbar — far left of the flowchart tools section
🕐 Timestamps toggle	Global navbar — clock icon, next to Settings
↩ Undo / ↪ Redo	Global navbar — undo/redo icon buttons
▶ Run / ■ Stop	Global navbar — green Run button (right side)
🐛 Debug	Global navbar — bug icon next to Run
Run target selector	Global navbar — chip dropdown left of the Run button
Logs / Table / Arm panel toggles	Left tool stripe (bottom section)
Steps / Docs / Robot panel toggles	Right tool stripe

The legacy Sim toggle (previously in the toolbar) is hidden and never shown. Run mode is controlled entirely by the run-target dropdown in the navbar.

Orientation and auto layout

The flowchart orientation (vertical vs horizontal) and auto-layout setting are controlled from Settings → Project tab (⚙ gear in the navbar). Vertical is the default.

Timestamps

When timestamps are enabled (clock icon in the navbar), each node shows the duration and elapsed time from the last run below its step name. Toggle with the clock icon or Ctrl+K opens settings for keybindings (not timestamps).

Timing Panel

After a run completes, a Timing Panel overlay appears inside the flowchart canvas. It shows per-step durations as a list and optionally as a chart. The panel can be dragged to any position within the flowchart area. It is the only genuinely floating element remaining in the flowchart view.

Cross-references

Step Library — finding steps to drag onto the canvas
Python Code Editor — viewing and editing the generated Python source
Running a Mission — running and debugging from the flowchart
Architecture — how a flowchart save becomes a Python file
