Sensors & Actors

The Sensors & Actors screen is the diagnostic and manual-control hub of BotUI. Tap its tile on the Dashboard to open the sensor-selection screen, which presents a grid of tiles — one per sensor group (or per individual sensor when only one exists in a group). Every tile routes to a dedicated screen appropriate to that sensor type: a time-series graph, a radial control, a system health dashboard, or a 3D visualisation.

Concept

All data shown here is live: BotUI subscribes to LCM channels on the raccoon_ring bus and the values update in real time. Nothing is polled on-demand — the TransportService spin timer drains incoming frames at ~30 fps and pushes them into Riverpod stream providers that rebuild the widgets automatically.

The screen hierarchy follows a consistent drill-down pattern. You always start at a category list, pick a port or sub-category, and arrive at a screen appropriate for that sensor type. The same back arrow returns you one level up at each step.

graph TD
    SEL["Sensor Selection Screen\n(category tiles grid)"]
    SEL --> ANA["Analog category list\n(ports 0–5, graph 0–4095)"]
    SEL --> DIG["Digital category list\n(ports 0–10, HIGH/LOW tiles)"]
    SEL --> MOT["Motor category list\n(ports 0–3)"]
    SEL --> SRV["Servo category list\n(ports 0–3)"]
    SEL --> IMU_SEL["IMU selection\n(Gyro/Accel/Magneto/Heading/Orientation)"]
    SEL --> CAM["Camera viewer"]
    SEL --> SYS["System Health dashboard"]
    SEL --> CALIB["Calibration Board sub-menu"]

    MOT --> MOTOR["Motor control screen\n(Power / Vel / Pos / Graph)"]
    SRV --> SERVO["Servo arc slider screen"]
    IMU_SEL --> GRAPH_IMU["IMU time-series graph"]
    IMU_SEL --> QUAT["Quaternion 3D visualisation"]
    SYS --> HEALTH_GRAPH["Health metric graph\n(CPU / RAM / Temp / Battery)"]
    SYS --> DISK["Disk usage breakdown"]

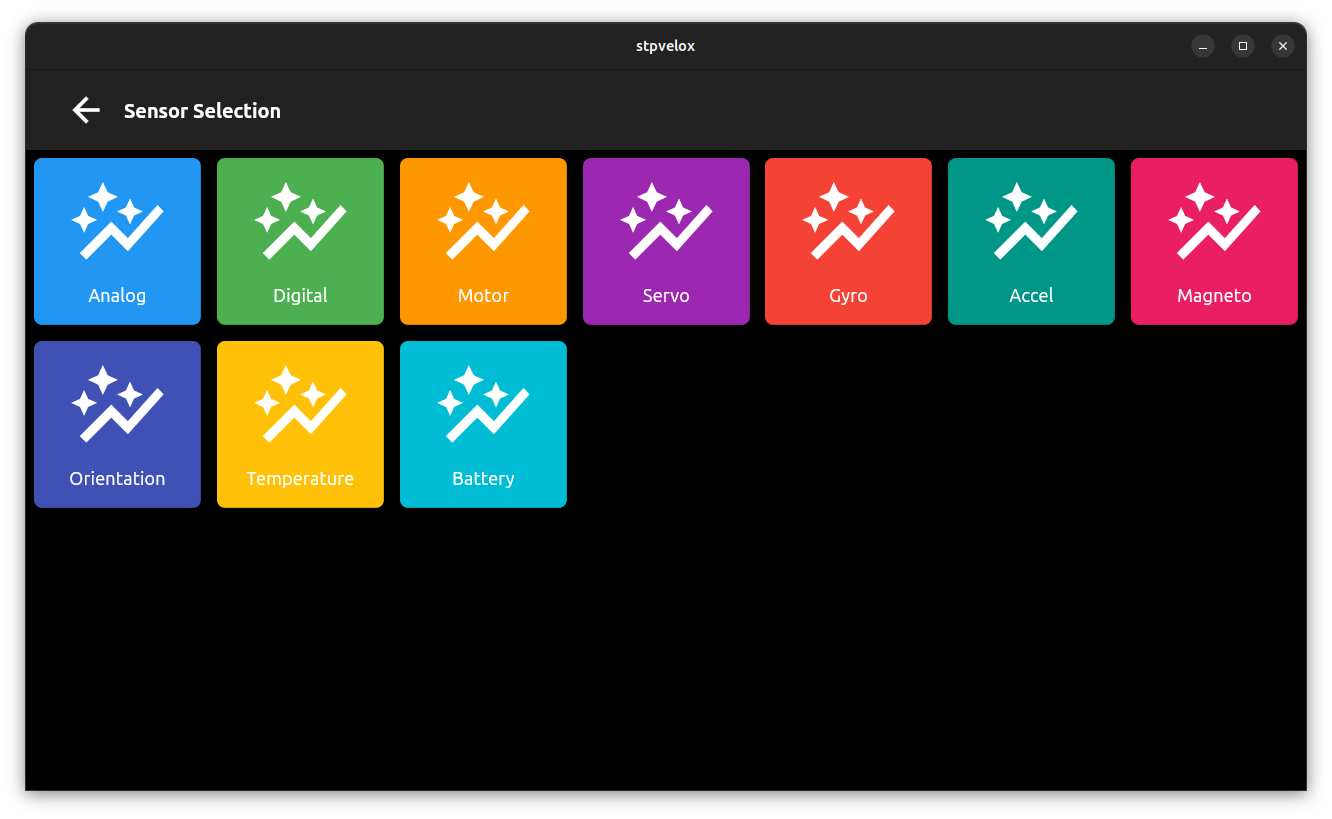

Sensor-Selection Screen

When you open Sensors & Actors you land on a grid of category tiles. The categories that appear depend on what sensors are detected at runtime:

IMU grouping

All IMU sub-sensors — Gyro, Accel (accelerometer), Magneto (magnetometer), Orientation (quaternion), and Heading — are grouped behind a single IMU tile. The tile only appears when at least one IMU sensor exists. Tapping it opens an intermediate selection screen (ImuSelectionScreen) where you pick the specific measurement you want.

Source: botui/lib/features/sensors/presentation/screens/sensor_selection_screen.dart:18-98

Sensor tile count

When a category contains exactly one sensor, BotUI navigates directly to that sensor’s screen without showing the intermediate category list.

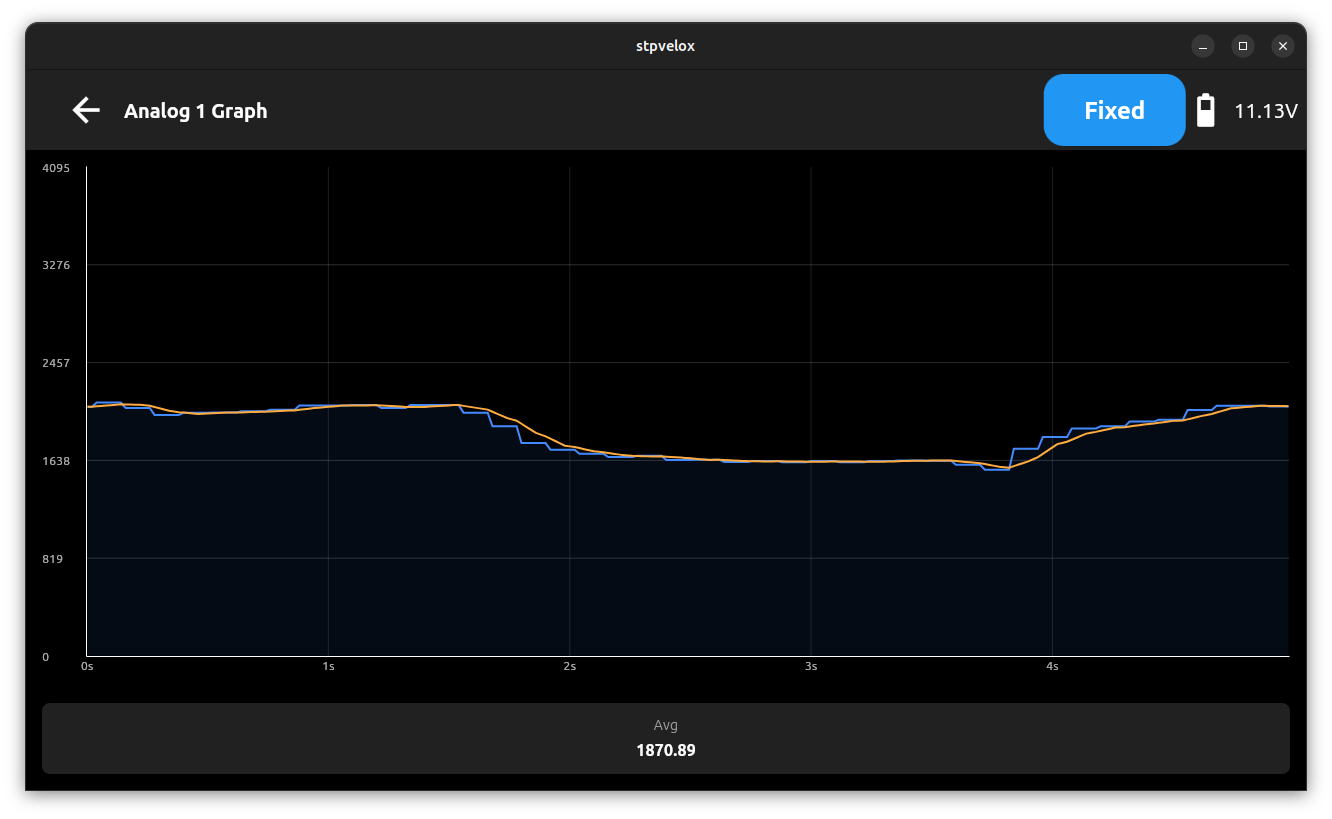

Graph Views

Tapping a graph-capable sensor opens a time-series chart. The x-axis shows elapsed time in seconds; the y-axis shows the measured value. All graph views scroll from right to left as new samples arrive.

Graph views are available for the following sensor types:

Temperature and Battery are not separate graph-view categories on this screen. They are part of the System Health screen (see below).

Source: botui/lib/features/sensors/data/datasource/sensors_remote_data_source.dart:58-193

Orientation (Quaternion) — 3D Visualisation

Tapping IMU → Orientation opens QuaternionScreen, which shows a real-time 3D orientation visualisation driven by the IMU’s quaternion output rather than a flat time-series graph. The AppBar of this screen displays the current IMU calibration accuracy and IMU die temperature, updated live.

Use this screen when you need to inspect the sensor-fusion output visually — for example to verify that an IMU mounting is correct or that the Madgwick filter has converged after a reboot.

Source: botui/lib/features/sensors/presentation/screens/quaternion_screen.dart

System Health Screen

The System tile opens SystemHealthScreen, a dashboard of seven metric cards laid out in a 2-column grid. Each card shows the current value, a colour-coded indicator, and (for CPU, RAM) a circular progress ring.

Tapping the CPU, RAM, CPU Temp, IMU Temp, or Battery card opens a scrolling time-series graph for that metric. Tapping Disk opens a dedicated disk-usage breakdown screen.

Source: botui/lib/features/sensors/presentation/screens/system_health_screen.dart

Motor Control

Tapping a motor port opens SensorMotorScreen, which provides a sidebar of four control modes on the left and the active control surface on the right.

Motor Mode Sidebar

Source: botui/lib/features/sensors/presentation/widgets/motor_mode_sidebar.dart

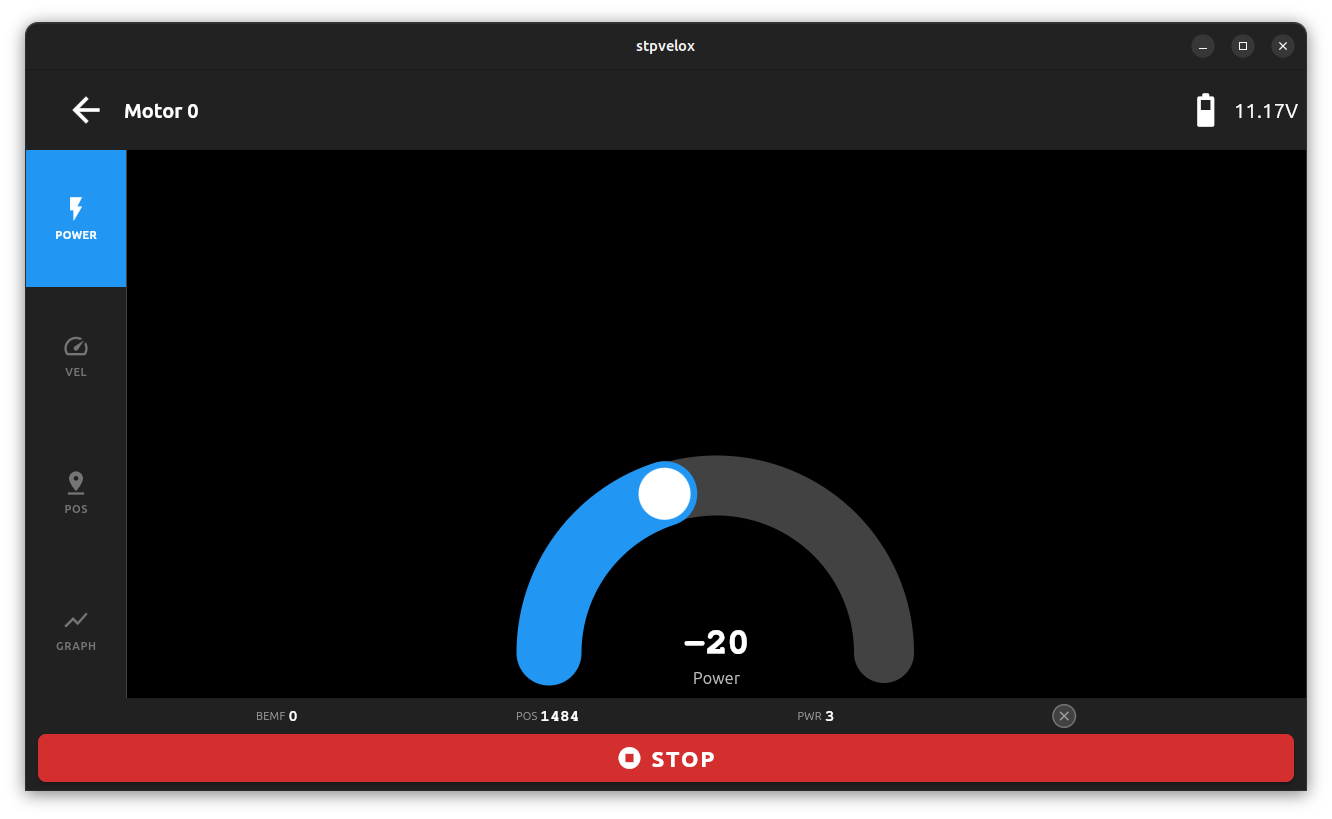

Power and Velocity Modes — Radial Slider

Both Power and Velocity use a circular (radial) slider widget (MotorRadialSlider), not a linear slider. Dragging the handle clockwise increases the value; counterclockwise decreases it. Commands are published at up to ~30 Hz while the handle is moving.

The status bar at the bottom of the screen shows the current BEMF (back-EMF value in raw ticks), current POS (encoder position), and a done indicator that turns green when a move-to-position command has completed.

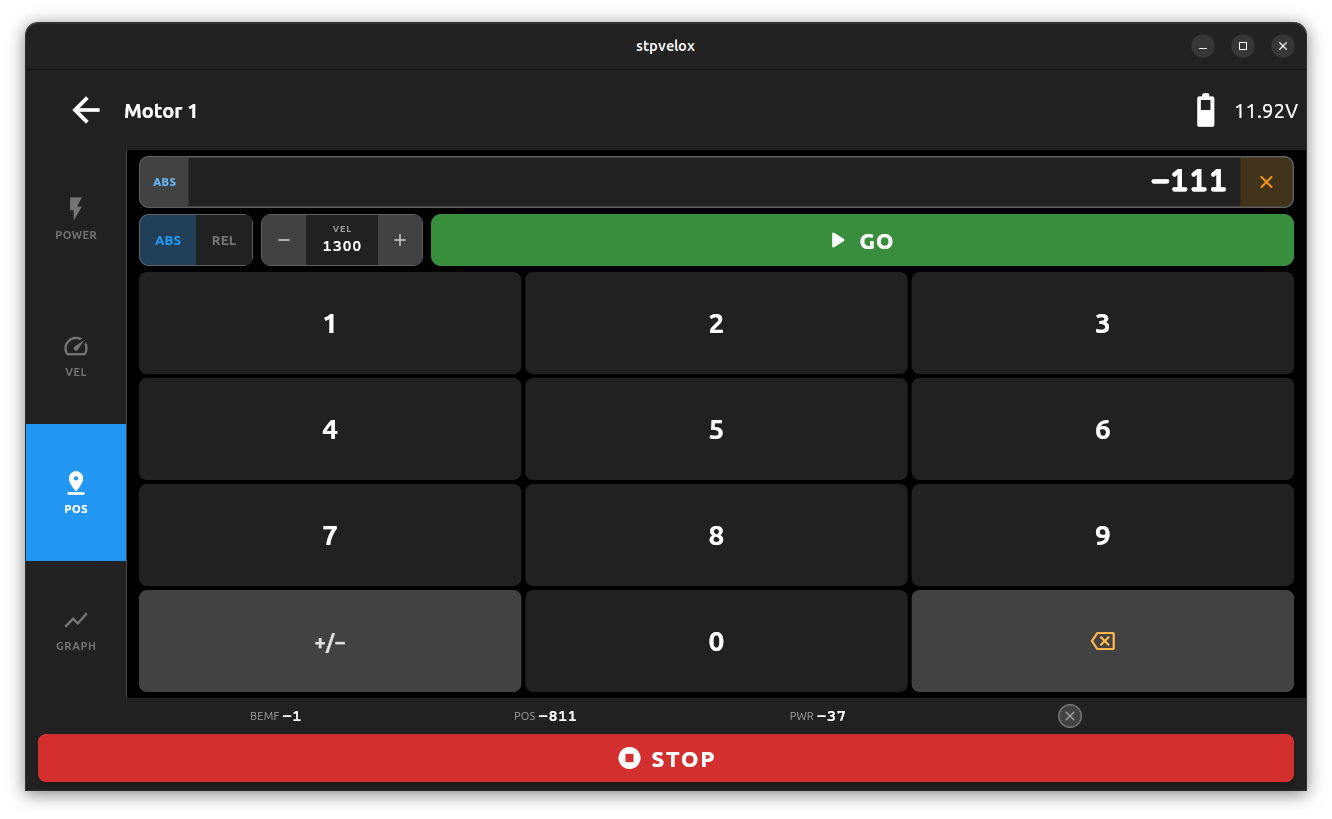

Position Mode — Keypad Entry

In POS mode a numeric keypad is displayed. Enter the target encoder-tick position, optionally toggle negative with the +/− key, and adjust approach velocity with the up/down buttons (steps of 100, clamped 0–5000). A Relative toggle switches from absolute move (motorPositionCommand) to relative move (motorRelativeCommand, a signed delta added to the current position). Tap Go to send the command.

Graph Mode — BEMF and Position

Switching to GRAPH opens a rolling time-series plot sampled at 10 Hz. The chart can show either BEMF or position over time; a toggle at the top switches between them. The target velocity is overlaid as a reference line when in velocity mode.

Bottom Action Buttons

Regardless of which mode is selected, four action buttons are always visible at the bottom of the screen:

Source: botui/lib/features/sensors/presentation/screens/sensor_motor_screen.dart:179-435

Motor Shutdown Guard

If the firmware’s shutdown flags are active for motors (reported on the SHUTDOWN_STATUS LCM channel), navigating to any motor port shows a warning dialog instead of opening the control screen directly:

Motors Disabled
Shutdown flags are enabled. Motors cannot be controlled
until shutdown is disabled.

[ Cancel ]  [ Disable ]

Tapping Disable calls the shutdown-status service to clear the motor-shutdown flag, then proceeds to the control screen. Tapping Cancel returns to the category list without modifying any state.

This guard prevents inadvertent motor commands when the hardware safety-kill has been triggered — for example after a MotorWatchdog timeout.

Source: botui/lib/features/sensors/presentation/screens/sensor_category_screen.dart:63-88

Stop All Motors Button

The Motor category screen (the list of motor-port tiles) shows a full-width Stop All Motors button at the bottom. Tapping it publishes motorPowerCommand(i, 0) for all four motor ports simultaneously (i = 0–3).

Source: botui/lib/features/sensors/presentation/screens/sensor_category_screen.dart:139-153

Servo Control

Tapping a servo port opens SensorServoScreen, which displays a large circular arc slider. The slider’s centre readout shows:

• The currently commanded angle (CMD N.N°), sourced from the last command seen on the LCM channel
• The actual reported servo angle (ACT N.N°), from the STM32 feedback
• The current servo mode name (e.g. position, fullyDisabled)

Normal Mode

In normal mode the arc spans 0° to 180°. Dragging the handle sends servoPositionCommand reliably. The STM32 moves the servo to the commanded angle and feeds back the actual position.

Danger Mode

Tapping the Danger button in the bottom bar toggles Danger Mode. When active:

• The arc expands to −50° to 360°, shown in red
• Angle values outside 0–180° are displayed in red to signal risk of mechanical damage
• Toggling off again clamps the current angle back to 0–180° and sends the clamped position

Use Danger Mode only if you need to drive a servo beyond its standard range and have confirmed the hardware can support it.

Bottom Buttons

Source: botui/lib/features/sensors/presentation/screens/sensor_servo_screen.dart

Servo Shutdown Guard and Disable All

The same shutdown-guard dialog that exists for motors also applies to servos. If the servo-shutdown flag is active, attempting to open a servo port shows the dialog with “Servos Disabled” instead of “Motors Disabled”.

The Servo category screen also has a Disable All Servos button at the bottom that publishes servoModeCommand(i, fullyDisabled) for all four servo ports.

Source: botui/lib/features/sensors/presentation/screens/sensor_category_screen.dart:46-153

Digital Sensor Tiles

The Digital category uses a compact 5-column grid rather than the standard 2-column grid used by other categories. Each tile displays the port name and uses a colour indicator:

• Green — digital input reads LOW (0)
• Red — digital input reads HIGH (1)

Tapping a tile opens the standard graph view for that port (0–1 range).

Camera Viewer

The Camera tile opens a live video stream viewer sourced from the raccoon camera service. No additional controls are shown on the sensor screen; camera configuration is done through Settings → Camera.
